LPG for Steam Generation

LPG for Industry

Steam Generation Application

Reduce Carbon footprint and fuel cost with LPG

LPG for Steam Generation Application

ABOUT THE CUSTOMER

Our customer is a leading organization operating in the field of Research, Development and Manufacture of world class oncology drugs. The customer was using Furnace Oil in their 2.8 MT Forbes Marshall Boiler for steam generation with a consumption of 60 MT per month

THE CHALLENGES

  • They were looking for a sustainable solution as their Carbon Footprint went overhead and took a conscious decision to curtail it.
  • They were unaware of the advantages LPG offered over polluting liquid fuels such as Furnace Oil.
  • They are facing challenge with the product quality

There was an inherent need of a solution to help the customer with a solution that is sustainable both at the long run with value adds.

SOLUTION OFFERED

Their major objective was to have a cleaner and sustainable approach to manufacturing without compromising on

  • Product Quality
  • Output Quantity
  • Cost benefits

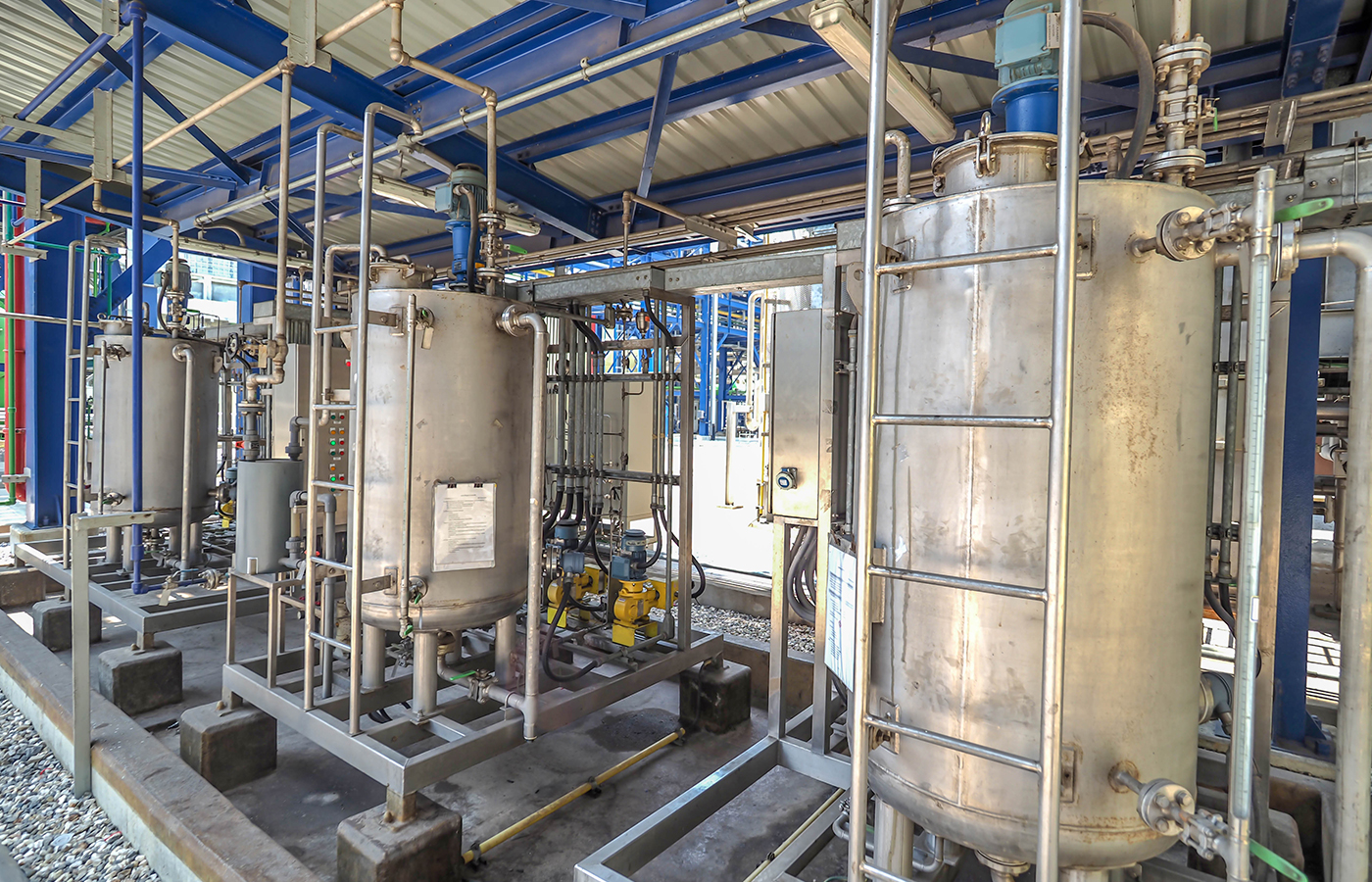

We suggested our 12 X 450 Maxima installation with heaterless vapouriser instead of conventional electrical vapouriser.

The advantages of maxima installation over conventional systems are:

  • Reduced installation space: 85% ( for bulk ) and 60% ( for LOT )
  • Enhanced safety feature: Reduction in joints by 70% compared to conventional LOT systems
  • Huge savings: On yearly maintenance and statutory approvals
  • Easier to handle: , 14 LOT cylinders = 1 Maxima
  • Flexible Investment model: Option of SUPERGAS’s Build-Own-Maintain installation model.

The advantages of heaterless vapouriser over conventional electrical vapourisers are:

  • Cost effective: Can save based on the capacity of vapouriser
  • Lower maintenance: Built with materials that does not corrode easily
  • Safe: Duly approved by PESO
  • Reliable: Trouble-free operation due to lower temperature and optimal operating pressure
  • Ease of Operation: No initial start up time required

OBSERVED BENEFITS

  • Productivity increased as 1 Kg of Furnace oil used to give them 12.30 Kg of steam while LPG system after optimisation, 1 Kg of LPG is providing 16.30 Kg of steam.
  • They were able to save 555 MT of CO2 release every year as compared to 60 MT of Furnace Oil.

PARTICULARS

Particular FO LPG
Calorific Value 9650 11850
 KG CO2/100,000 Kcal  33 25
Total CO2 Emission (MT/Year)  2289.4 1737
  • Carbon Footprint Reduction (MT/Year) after converting to LPG is 555.84

For more info, contact 91211 77930 or reach out to sabhishek@supergas.com
